When drivers pull into a service bay for scheduled maintenance, the agenda is usually predictable. Technicians change the engine oil, rotate the tires, measure brake pad thickness, and top off the washer fluid. These items top the list because their wear patterns are visible, intuitive, and clearly tied to mileage. Tucked away under an intake duct or hidden beneath a plastic cover in the trunk, the twelve-volt battery rarely receives that level of scrutiny.
Most motorists treat the battery like an incandescent light bulb: as long as the engine cranks in the morning, the system is assumed to be in perfect working order. This passive mindset is one of the leading causes of unexpected roadside strandings. Modern vehicles demand more from their electrical foundations than at any other point in automotive history. Incorporating an objective, diagnostic battery test into every routine service interval is no longer an optional recommendation; it is an indispensable preventative safeguard that protects sensitive onboard electronics, shields the charging system from premature failure, and saves vehicle owners substantial money.
The Illusion of Health in Binary Battery Failure
Mechanical components usually give plenty of advance warning before they fail completely. A warped brake rotor pulses through the pedal, a worn strut clunks over potholes, and an exhaust leak announces itself with an unmistakable rasp. Automotive batteries do not follow this generous script.
The electrochemical decline of a lead-acid or absorbent glass mat (AGM) battery is largely invisible to the driver. A vehicle can crank without hesitation at eight in the morning, then fail to trigger a single click at five in the afternoon. This sudden-death phenomenon occurs because an aging battery can often retain sufficient surface voltage to power accessories and turn over a warm engine, right up until its internal plate structure degrades past a razor-thin operational threshold.
Without specialized diagnostic equipment, a driver cannot feel when internal plate corrosion has stripped away thirty percent of a battery’s original capacity. By the time the starter begins to drag noticeably on a cold morning, the battery has already entered terminal decline. Routine testing removes this guesswork by measuring capacity long before the battery crosses the threshold into complete operational failure.
The Limitation of Static Multimeter Checks

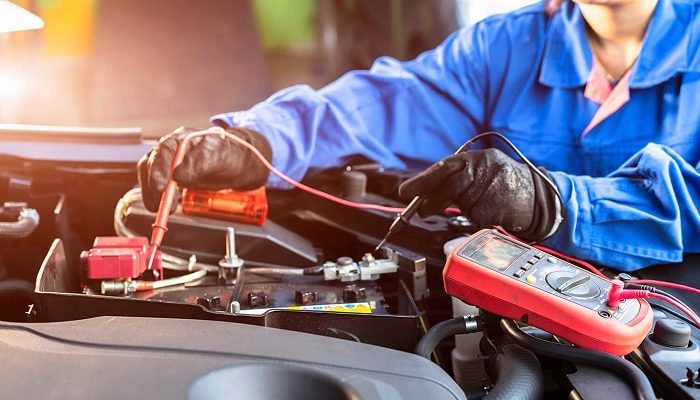

A lingering misconception among many car owners—and even some general repair shops—is that touching the probes of a standard handheld multimeter to the battery terminals provides a reliable health check.
A resting voltage test only reveals a battery’s current state of charge; it says almost nothing about its underlying state of health. A battery that reads a healthy 12.6 volts at rest can easily collapse to eight volts under the intense draw of an engine starter.
Why Conductance Testing Matters
Professional service centers utilize specialized handheld conductance testers that assess the physical and chemical condition of the internal battery plates without draining the unit. Rather than merely taking a surface-level voltage reading, conductance testing passes a low-frequency alternating current signal through the battery cells.
This process measures the plate surface area available to conduct electrical current:
-
Internal Resistance: As a battery ages, internal resistance increases due to lead sulfation, active material shedding, and electrolyte depletion. A conductance tester measures this resistance in milliseconds.
-
Cold Cranking Amp Verification: The diagnostic device compares the battery’s real-time output against the original factory Cold Cranking Amps (CCA) rating stamped on the label.
-
State of Health vs. State of Charge: The tool clearly separates a battery that simply needs to be recharged from one whose internal architecture has deteriorated beyond safe recovery.
Receiving a printed diagnostic slip that indicates a battery is operating at fifty percent of its rated cranking power gives the vehicle owner an objective basis for replacement, well before an actual breakdown occurs.
The Electrical Burden of Modern Vehicle Architecture
The automotive battery’s job description has expanded radically over the past decade. In older vehicles, the battery’s sole high-stress duty was to supply power to the starter motor; once the engine caught, the alternator comfortably managed the sparse collection of lights, analog gauges, and basic cabin blowers.
Today’s passenger vehicles are essentially mobile server racks. They carry dozens of microprocessors, extensive sensor suites for advanced driver-assistance systems, heated elements across seats and steering wheels, electric power steering racks, and high-definition infotainment screens.
The Demands of Automatic Start-Stop Systems
The widespread adoption of automatic engine start-stop technology has dramatically increased the cyclical strain placed on starting batteries. In heavy urban traffic, a vehicle’s engine might shut down and restart twenty times during a single commute.
While the engine is stopped at a red light, the battery must shoulder the entire electrical load of the vehicle—running the cabin air blowers, headlights, audio system, and navigation displays—before instantly delivering several hundred amps to spin the engine back to life. Standard flooded batteries cannot survive this operational profile, which is why modern platforms mandate heavy-duty Absorbent Glass Mat (AGM) or Enhanced Flooded Batteries (EFB). Routine testing ensures that these specialized units maintain the rapid charge acceptance and deep-cycling resilience required to support start-stop programming without faulting.
Protecting the Alternator and Upstream Electronics
The battery and the alternator operate in a continuous, symbiotic loop. When a battery begins to degrade and loses its ability to accept or hold an electrical charge, the vehicle’s voltage regulator responds by commanding the alternator to work harder.
An aging, internally resistant battery acts as a persistent electrical drain on the charging system. Instead of tapering off its current output once the engine is running, the alternator is forced to output continuous, maximum-rated amperage to compensate for the failing battery. This constant duty cycle generates extreme internal heat inside the alternator, scorching the internal stator windings, melting rectifier diodes, and burning out the voltage regulator.
Replacing a standard battery during a scheduled oil change is an affordable, routine service. Replacing both a ruined battery and an overheated, seized alternator alongside it turns a simple maintenance stop into a major four-figure repair bill.
Furthermore, unstable system voltage wreaks havoc on modern Controller Area Network (CAN-bus) systems. When system voltage dips even temporarily during a hard crank, sensitive modules register low-voltage fault codes. Drivers often experience this as bizarre dashboard warnings: stability control lights illuminating, infotainment screens rebooting randomly, or transmission shift solenoids hunting for gears. Testing the battery at regular service visits catches low-voltage conditions before they trigger confusing, expensive diagnostic wild goose chases.
How Seasonal Extremes Accelerate Failure
Battery failure rates follow a sharp seasonal curve, with spikes occurring during the first bitter freeze of winter and the hottest weeks of midsummer. However, the season that causes the physical damage is rarely the season that claims the battery’s life.
Excessive summer heat is the true silent killer of automotive batteries. High ambient temperatures under the hood accelerate internal chemical reactions, evaporate the liquid electrolyte inside flooded cells, and dramatically speed up the corrosion of the internal lead grid structure. Yet because warm motor oil offers very little rotational resistance, an engine is exceptionally easy to crank in eighty-degree weather. The weakened battery masks its damage all summer long.
When winter arrives, the dynamic reverses. Sub-freezing temperatures cause motor oil to thicken significantly, forcing the starter motor to pull twice as much electrical current to turn the crankshaft. Simultaneously, cold temperatures slow down the internal chemical reactions of the battery, cutting its output capacity roughly in half.
The heat-damaged battery that survived August simply does not possess the reserve power required to overcome December cold. Evaluating battery health during autumn service appointments exposes heat damage sustained over the summer, allowing motorists to address marginal batteries before winter weather leaves them stranded in an icy driveway.
Shifting from Emergency Triage to Scheduled Maintenance
Automotive maintenance is fundamentally an exercise in risk management. When a battery fails unexpectedly, it rarely does so in a convenient location. It fails at an airport parking lot late at night, in a grocery store queue, or during a hectic morning school run.
The subsequent emergency response is inevitably expensive and frustrating: calling a tow truck, waiting for an emergency roadside jump start, and being forced to purchase whatever replacement battery happens to be in stock at the nearest open retail outlet, often at premium emergency pricing.
Integrating digital battery testing into every routine service interval converts an unpredictable mechanical failure into a controlled, scheduled replacement. It gives drivers the agency to review their options, select the correct battery specification for their driving habits, and preserve the reliability of their daily transportation without disruption.
